Safe, Solid, Simple

The Woodcut Bowlsaver Max4 is a strong, versatile bowl coring system, giving you the flexibility to choose the coring capacity that's right for you and your lathe.

Choose the Max4 Starter with Small and Large blades for bowls from 3" to 12" in diameter, or add the Max Blade for greater coring capacity, allowing you to core bowls up to 18" in diameter.

It's all built around the same Max4 platform, so if you choose the Starter and later want to core larger bowls, simply purchase the Max Blade and add it to your existing system. Nothing else is required.

Choose Your Max4

MAX4 STARTER - SMALL + LARGE BLADES

The Max4 Starter includes the Small and Large blades with precision-sharpened Stellite cutters.
- Core bowls from 3" to 12" in diameter
- Suitable for lathes with 1 HP or more
- Small + Large blades included
A complete bowl coring solution in its own right, the Max4 Starter is ideal for turners who don't require the additional capacity of the Max Blade.

COMPLETE MAX4 - SMALL + LARGE + MAX BLADE

For greater coring capacity, select Add Max Blade when ordering to create the complete three-blade Max4 system.
- Core bowls up to 18" in diameter
- Requires a lathe with a minimum of 1.5 HP
- Small + Large + Max blades included
Already own the Max4 Starter? The Max Blade can be purchased separately and added directly to your existing Max4 system. No additional platform or components are required.

Key Features

ONE MAX4 SYSTEM. TWO OPTIONS.
Choose the coring capacity that's right for your turning. The Max4 Starter provides Small and Large blades for bowls from 3" to 12". If you want to core larger bowls, simply add the Max Blade to increase your capacity up to 18".

ACCURATE, REPEATABLE RESULTS
Like all Woodcut Bowlsavers, the cutter returns to the same position when re-entering the cut, helping maintain a consistent bowl shape as you remove each core.

STRONG, STABLE PLATFORM
The Max4 platform is precision-machined from cast aluminium and steel and anodised for durability, providing a strong and stable setup for coring both wet and dry timber.

TAILSTOCK SUPPORTED
A machined No. 2 Morse Taper and 3/8"-16 threaded rod connect the system securely to the lathe tailstock, creating a strong, rigid platform.

COMFORTABLE, EXTENDABLE HANDLE
Supplied with a 20" steel handle featuring a foam grip for comfort and control. The extension spigot allows a second Woodcut handle to be added if additional leverage is required.

MAX BLADE ADVANTAGE
When the Max Blade is added, its uniquely concave design is guided by a roller and supported by a steel post to help prevent twisting under heavy load. No additional tool rest is required.

Why Stellite?

The Max4 blades are tipped with Stellite, a cobalt alloy chosen for its durability, long life and finish quality.
- Works across both hard and soft timbers
- Withstands shocks from knots and defects in the timber
- Provides an excellent finish from the tool
- Excellent wear resistance and long operational life
- Can be hollow ground and honed with a diamond file
- Supplied sharp and ready to use

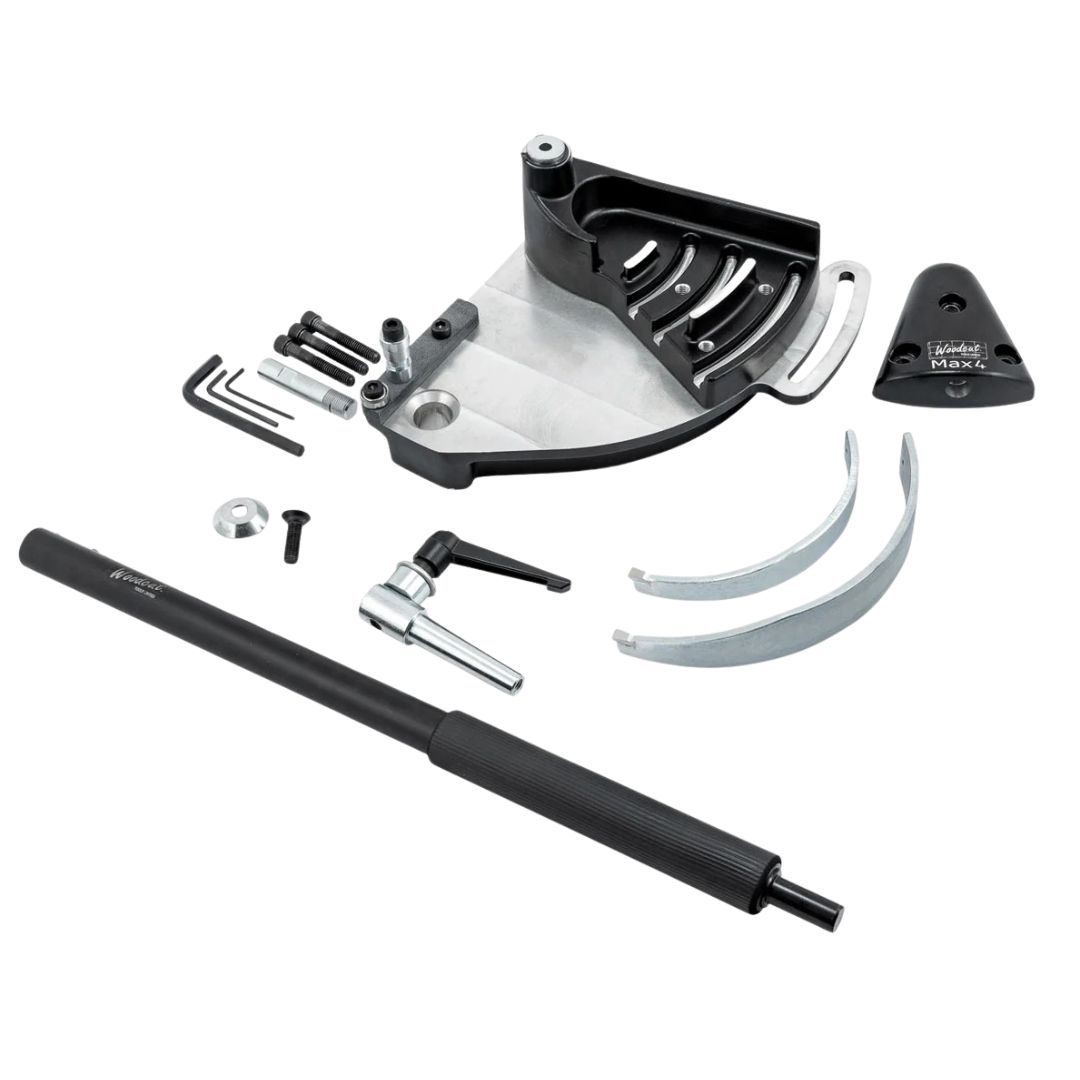

What's Included

MAX4 STARTER INCLUDES:

• Small blade with Stellite cutter
• Large blade with Stellite cutter
• Max4 platform
• 20" steel handle with foam grip and extension spigot
• No. 2 Morse Taper
• 3/8"-16 threaded rod
• Detailed user guide
• Planning templates
• Kit bag with hex keys

WANT THE COMPLETE MAX4?
Select Add Max Blade when ordering. The Max Blade fits directly into the same Max4 platform, giving you the complete three-blade system and increasing your coring capacity to bowls up to 18" in diameter.

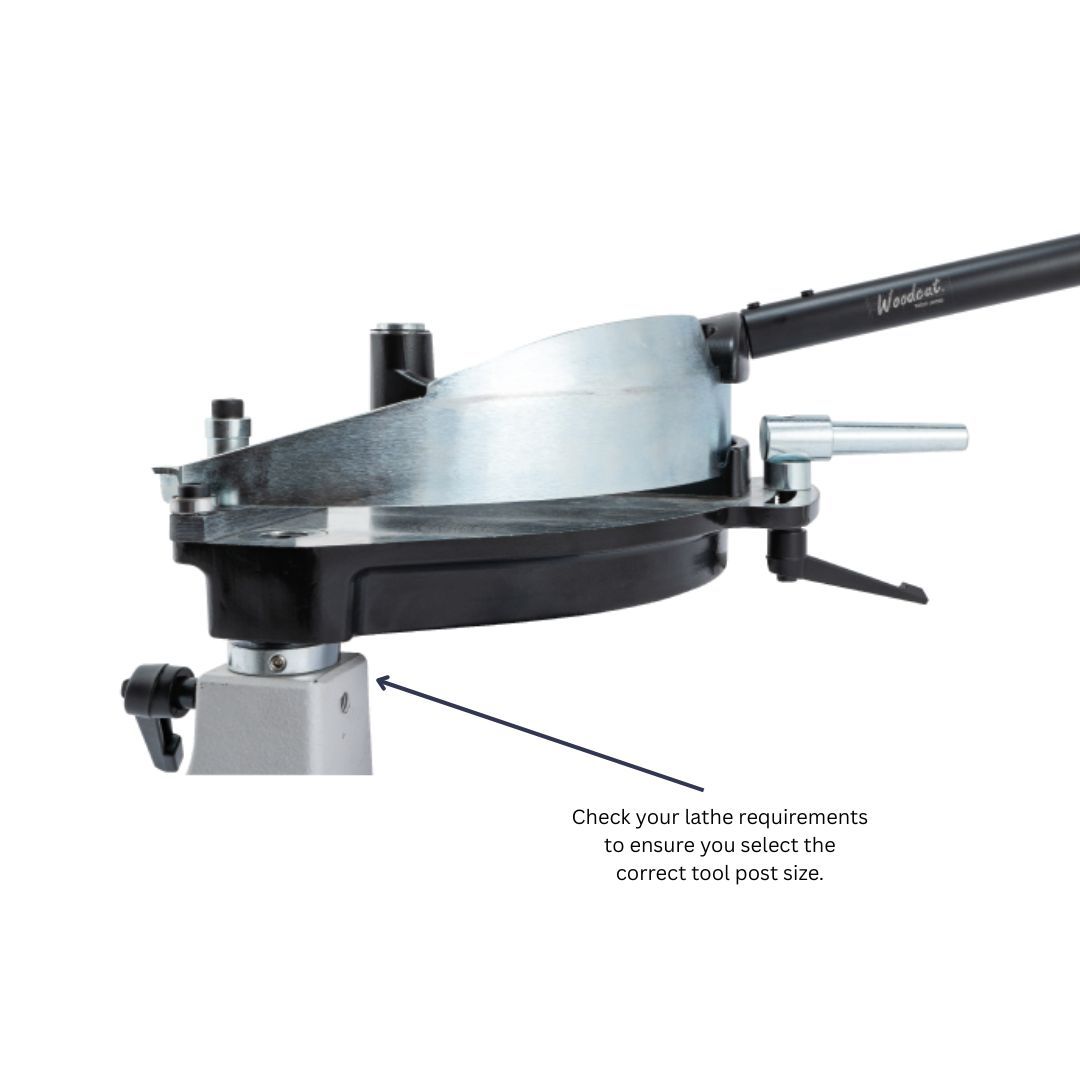

Select Your Tool Post

A tool post is required to mount the Bowlsaver Max4 to your lathe. Select the correct tool post for your lathe when ordering.

Optional Accessory

The Bowlsaver Light Guide makes planning your cores even easier by tracing the cutter's path across your bowl blank before you make the cut. Sold separately.
